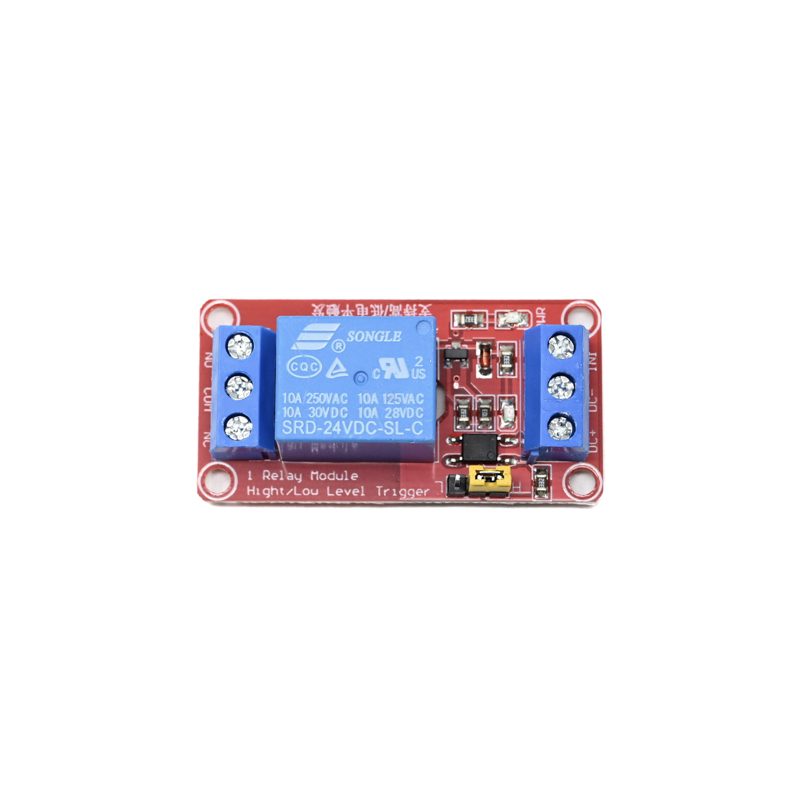

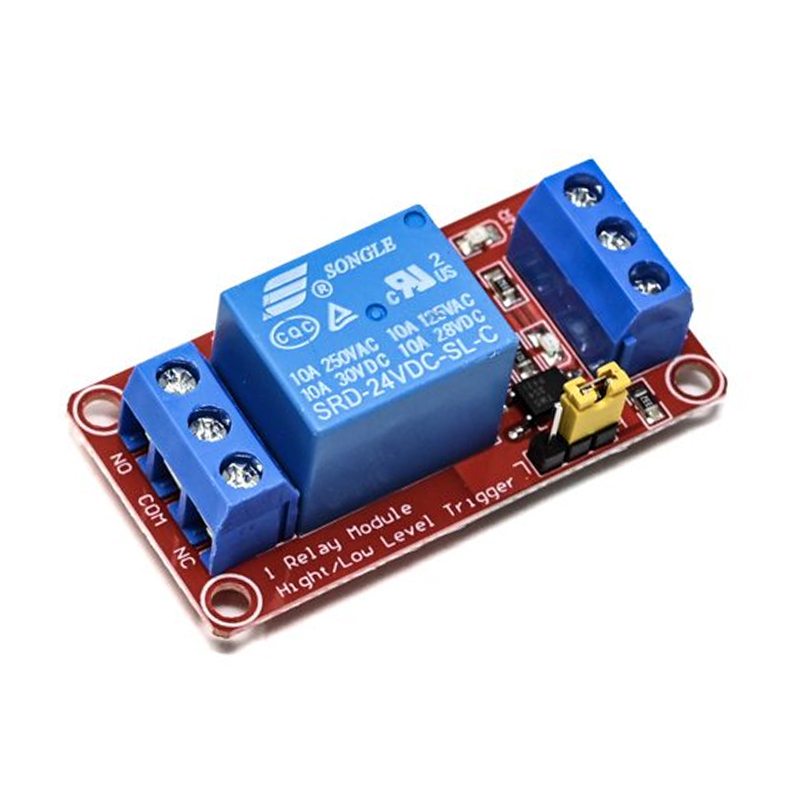

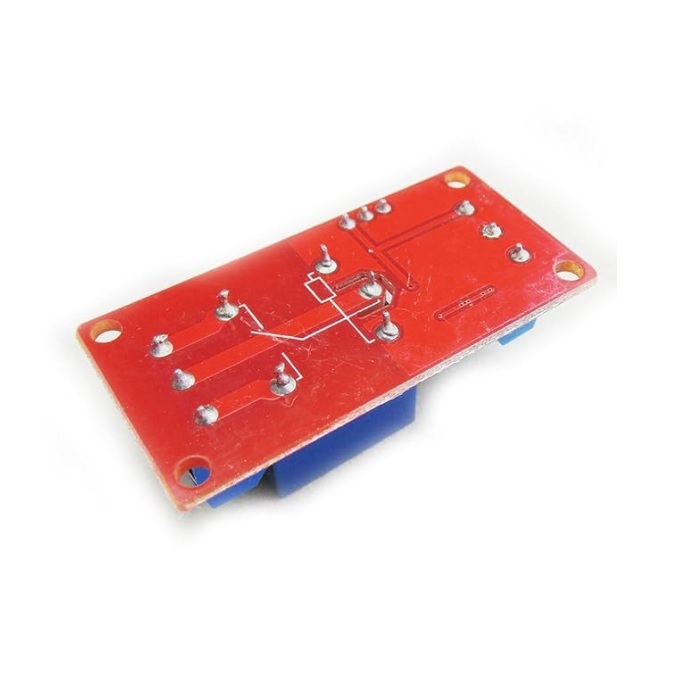

1 Channel Relay Module 24V High and Low Level Trigger Relay Control
- Number of Channels: 1
- Current Rating: 10A
- Voltage Compatibility:125V
- 125 VAC Supports
SKU: Not Found
Brand: Songle
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 1 Channel Relay Module with Optocoupler and 10A rating is a compact yet powerful device used for controlling high-power electrical circuits. It features a single relay channel capable of switching loads up to 10A at various voltages, supported by optocoupler isolation for enhanced reliability and protection against electrical interference.
This module supports both high and low-level trigger signals, making it versatile for integration into diverse electronic and automation projects where precise and safe switching is essential. Its compact size and robust design make it ideal for industrial applications, robotics, and DIY electronics, ensuring dependable operation and longevity in controlling high-current devices.
Features:
- Controls one high-power circuit independently.
- Switches loads up to 10A.
- Compatible with AC and DC systems.
- Uses optocoupler isolation for safety.
- Supports both high-level and low-level trigger signals.
- Ideal for industrial automation and DIY projects.
- Compact design for easy integration.
- Includes LED indicators for relay status.
Packages Includes:
Technical Specifications
| Current Rating | 10A |
|---|---|
| Height (mm) | 20 |
| Length (mm) | 50 |
| Model | Relay Module |
| No. of Channels | 1 |
| Shipping Dimensions | 11 × 7 × 2.5 cm |
| Shipping Weight | 0.016 kg |
| Width (mm) | 25 |
