ARM Microcontrollers IC

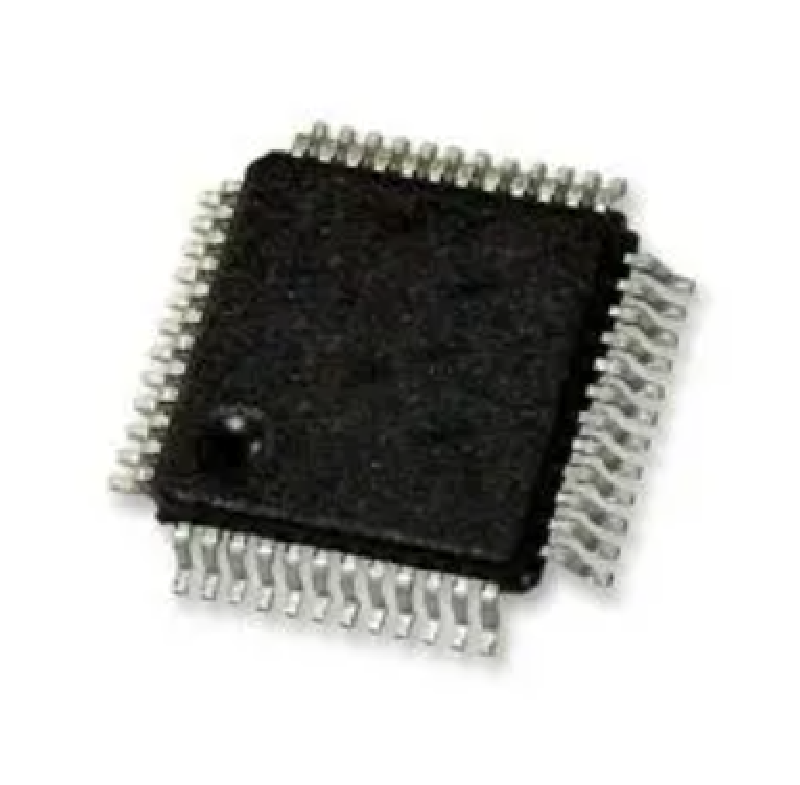

STM32L431CBT6-STMICROELECTRONICS-ARM MCU, ARM Cortex-M4 Microcontrollers, ARM Cortex-M4, 32 bit, 80 MHz, 128 KB, 48 Pins
- Product Range: ARM Cortex-M4 Microcontrollers
- Device Core: ARM Cortex-M4
- Data Bus Width: 32 bit
- Operating Frequency Max: 80MHz
- Program Memory Size: 128KB
- No. of Pins: 48Pins
- IC Case / Package: LQFP
- No. of I/O’s: 38I/O’s
- Interfaces: CAN, I2C, SAI, SPI, UART, USART
SKU: Not Found
Brand: Microchip Technology
Out of stock
₹207.00
Free Delivery Expected:
Saturday, Aug 8 - Monday, Aug 10
Order within the next 6 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
Ultra-low power ARM® Cortex®-M4 32bit MCU+FPU, 100DMIPS. It supports 16x communication interfaces, rich analogue peripherals (independent supply) and 11x timers.
Features:
- 176.7 ULPBench® score energy benchmark
- 1.25 DMIPS/MHz (Drystone 2.1) performance benchmark
- Internal 48MHz with clock recovery, 2 PLLs for system clock, audio, ADC
- Up to 83 fast I/Os, most 5V-tolerant
- RTC with HW calendar, alarms and calibration
- Up to 21 capacitive sensing channels: support touch key, linear and rotary touch sensors
- Quad SPI memory interface, 14-channel DMA controller
- True random number generator, CRC calculation unit, 96bit unique ID
- Development support: serial wire debug (SWD), JTAG, Embedded Trace Macrocell™
- ECOPACK2® compliant
Package Includes:
1 x STM32L431CBT6-STMICROELECTRONICS-ARM MCU, ARM Cortex-M4 Microcontrollers, ARM Cortex-M4, 32 bit, 80 MHz, 128 KB, 48 Pins
Technical Specifications
| Case/Package | LQFP |
|---|---|
| Data Bus Width | 32bit |
| Data RAM size and Type | 64KB |
| Frequency Rating | 80MHz |
| Interface Type | CAN, I2C, SAI, SPI, UART, USART |
| Manufacturer | Microchip Technology |
| Max. Clock Frequency (MHz) | 80MHz |
| Max. Supply Voltage (V) | 3.6V |
| Min Supply Voltage | 1.71V |
| Mounting Type | Surface Mount |
| No. of I/Os | 38 |
| No. of Pins | 48Pins |
| Processor Series | ARM Cortex-M4 Microcontrollers |
| Program Memory (KB) | 128KB |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
